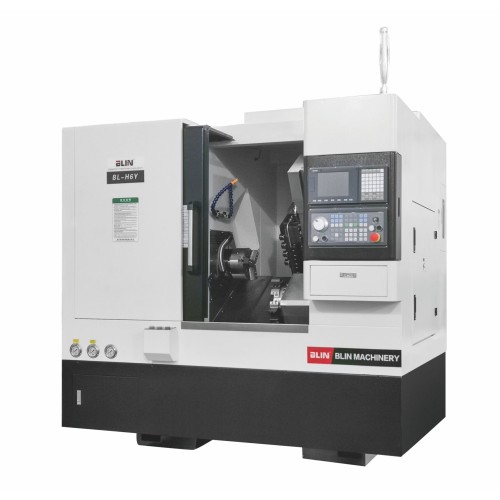

Máy tiện CNC băng nghiêng BL-H6Y (dòng tiêu chuẩn H)
H STANDARD Series
■TAIWAN technology ■6''/8'' collet chuck ■8T tool turret &4+4 Live tool with Y axes ■Without tailstock
Specification:
| Item | Specification | Unit | BL-H6Y | |
| Capacity | Collet chuck size | / | 6'' | 8'' |
| Max. swing dia. over bed | mm | Φ350 | ||
| Max. turning length | mm | 250 | ||
| Max. turning dia. | mm | Φ200 | ||
| Standard turning dia. | mm | Φ150 | ||
| Spindle | Spindle bore | Mm | Φ56 | Φ66 |
| Spindle end type | / | A2-5 | A2-6 | |
| Spindle speed | rpm | 4500 | 4000 | |
| Max. bar through dia. | mm | 44 | 51 | |
| Spindle motor power | kw | 11 | ||
| X/Z axes | X/Y/Z axes linear guideway width | mm | 30/30/30 | |
| X,Y,Z axes ball screw O.D./Pitch | mm | Φ32/10,Φ25/10,Φ32/10 | ||
| X axes travel | mm | 350 | ||
| Y axes travel | mm | 220 | ||
| Z axes travel | mm | 300 | ||
| X/Y/Z axes rapid moving speed | m/min | 24/16/24 | ||
| Tool turret | Tool turret type | / | 8T Hydraulic tool turret&4+4 Independent live tool group with Y axes | |
| Live tool collet size | / | ER25 | ||
| Live tool speed | rpm | 3000 | ||
| Tool shank size | mm | 20×20, Φ25 | ||
| Tailstock | Tailstock | / | N/A | |
| Accuracy | Positioning accuracy(X/Y/Z) | mm | 0.008/1000 | |
| Repeat positioning accuracy(X/Y/Z) | mm | ≤0.005 | ||
| Others | Overall size | mm | 2270×1940×2070 | |
| N.W. | kg | 3000 | ||
