Máy dập KINGLAN

Máy dập ALP Máy dập ALD Máy dập ALG

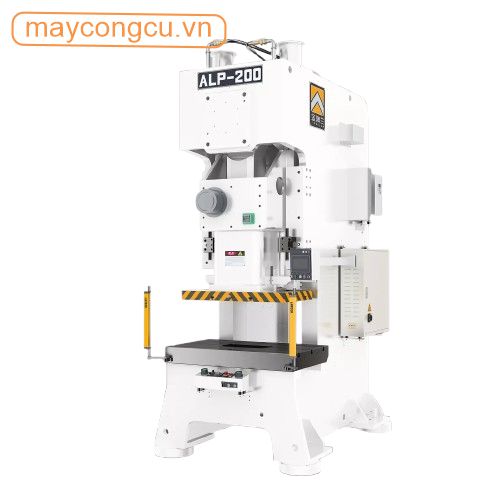

Model: ALP

Công suất: 25~315 tấn

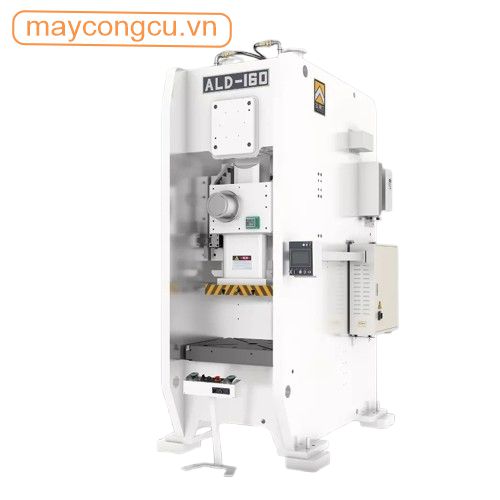

Model: ALD

Công suất: 80~260 tấn

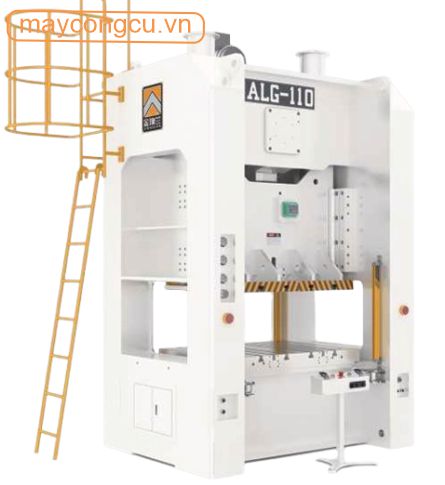

Model: ALG

Công suất: 160~400 tấn
Máy dập ALM Máy dập ALF Máy dập ALC

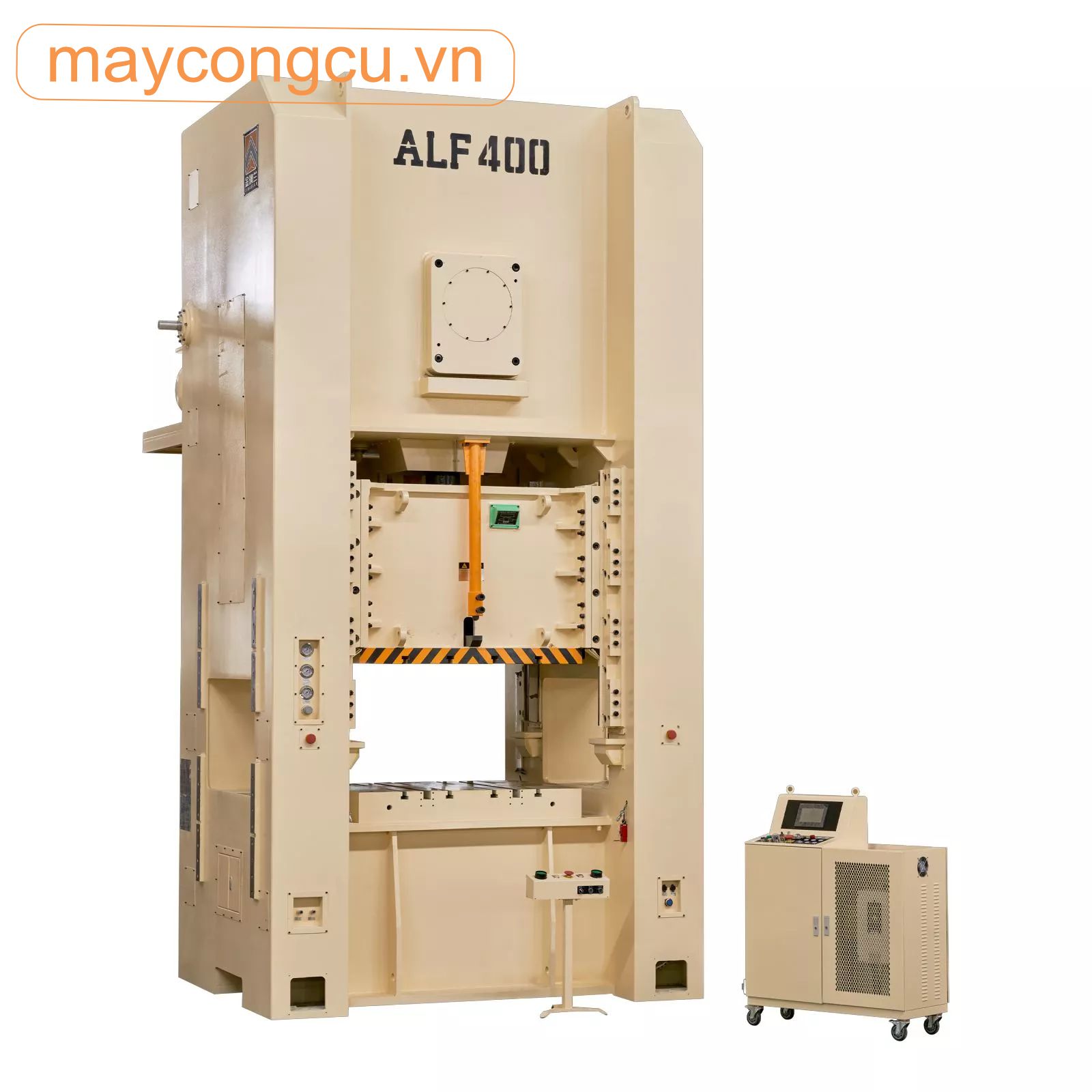

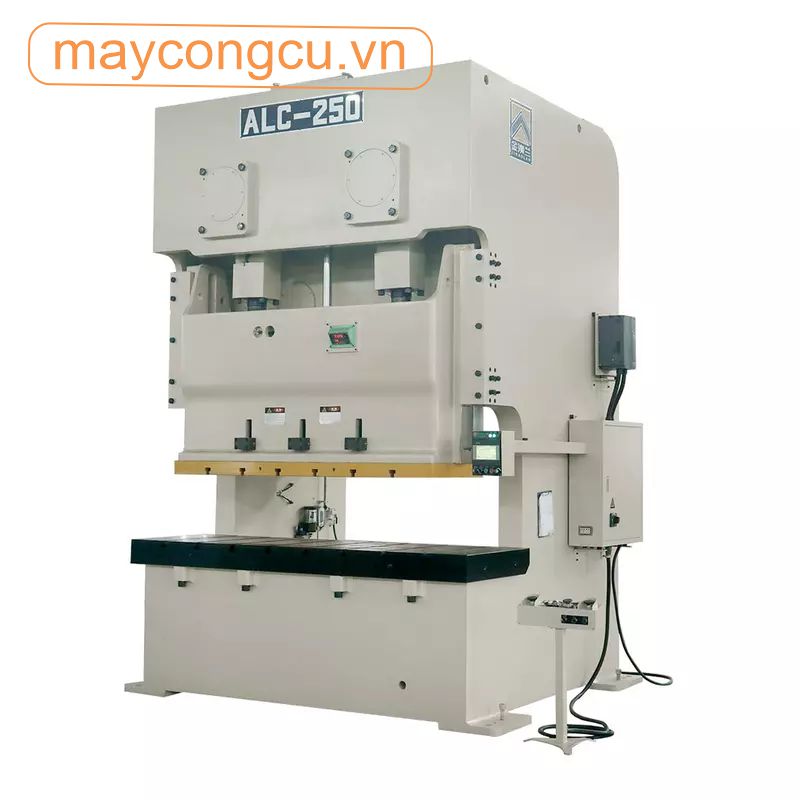

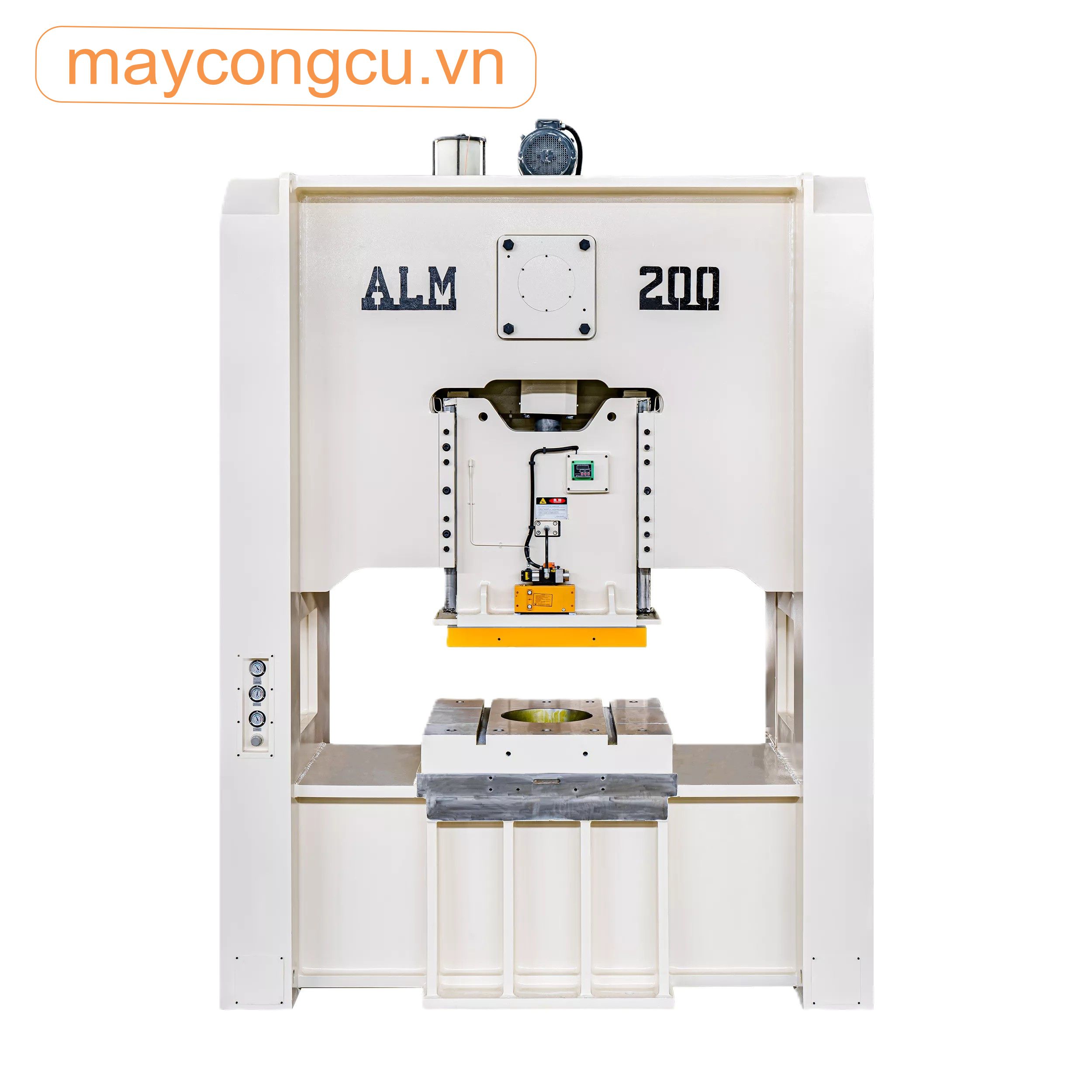

Model: ALM Model: ALF Model: ALC

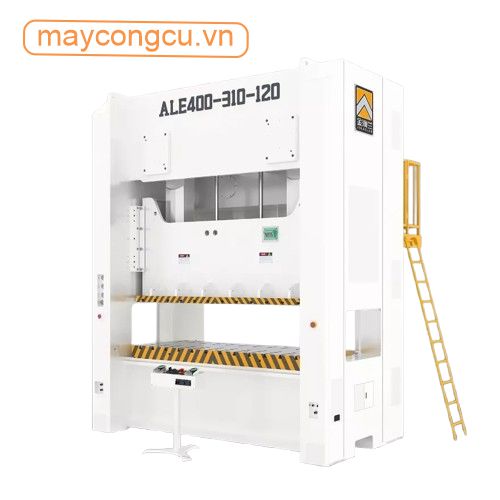

Máy dập ALE Máy dập ALT Máy dập ALH

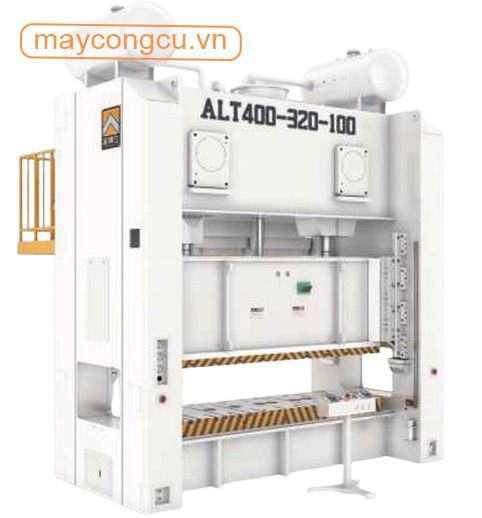

Model: ALE Model: ALT Model: ALH

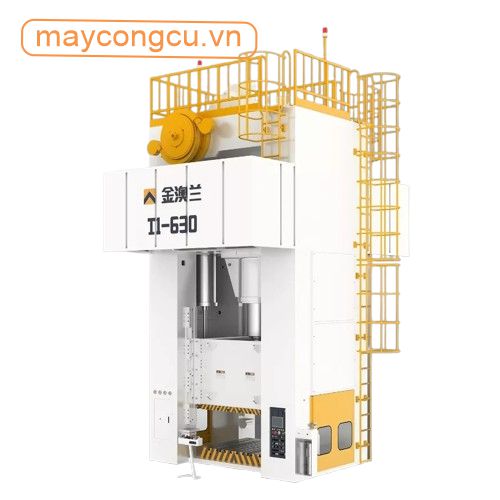

Máy dập T1 Máy dập T2 Máy dập T2L8

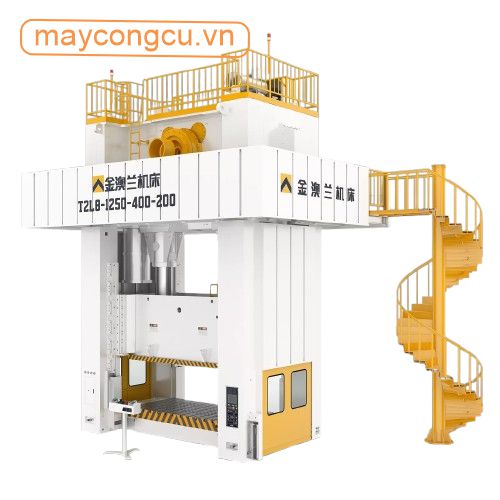

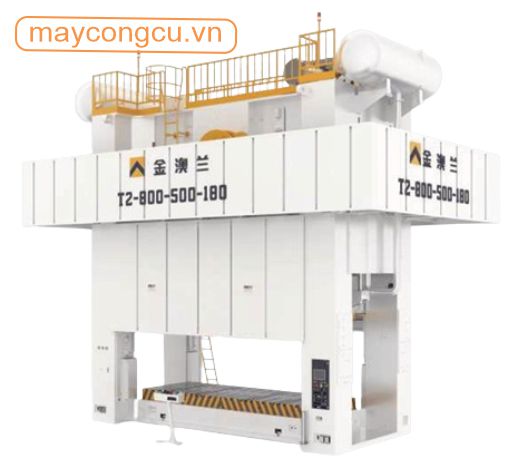

Model: T1 Model: T2 Model: T2L8

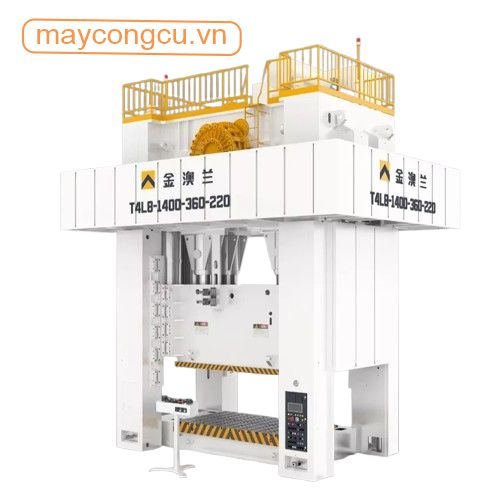

Máy dập T4 Máy dập T4L8 Máy dập T2 MULTIPLE PRESSES AUTOMATION LINE

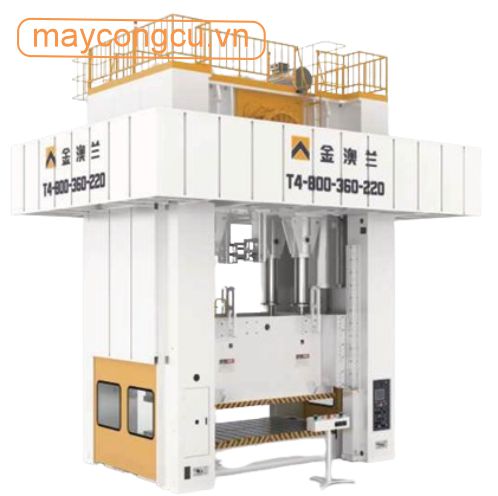

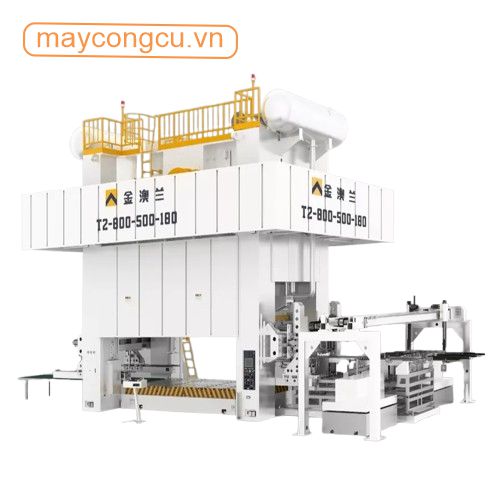

Model: T4 Model: T4L8 Model: T2 MULTIPLE PRESSES AUTOMATION LINE

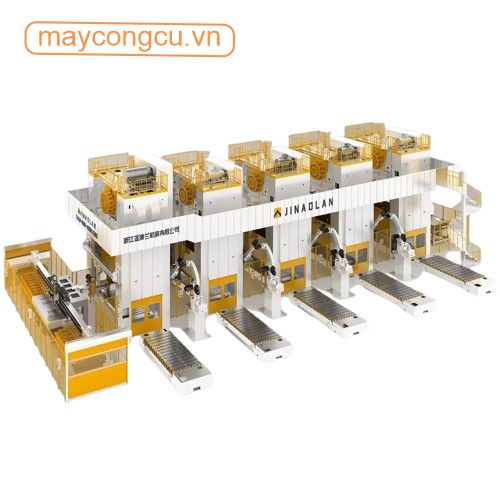

Máy dập T4 MULTIPLE PRESSES AUTOMATION LINE
Model: T4 MULTIPLE PRESSES AUTOMATION LINE
Model: ALP
Model Unit ALP-25 ALP-35 ALP-45 ALP-60 ALP-80 ALP-110 ALP-160 ALP-200 ALP-260 ALP-315
Type Ton V H V H V H V H V H V H V H V H V H V型 H型
Stroke mm 60 30 70 40 80 50 120 60 150 70 180 80 200 90 200 100 250 150 250 150
Stroke Per Minute S.P.M 60-140 130-200 40-120 110-180 40-100 100-150 35-90 80-120 35-80 80-120 30-60 60-90 20-50 40-70 20-50 50-70 20-40 40-50 20-40 40-50
Tonnage Rated Point mm 3.2 1.6 3.2 1.6 3.2 1.6 4 2 4 2 6 3 6 3 6 3 7 3.5 7 3.5
Die Height(D.H) mm 200 215 220 235 250 265 310 340 340 380 360 410 460 510 460 510 500 550 500 550
Slide Adjustment mm 50 55 60 75 80 80 100 110 120 120
Slide Area mm 470*220*50 520*250*50 560*300*60 700*360*70 770*420*70 910*470*80 990*550*90 1130*630*90 1130*700*100 1200*800*100
Bolster Area mm 680*300*70 800*400*70 850*440*80 900*500*80 1000*550*90 1150*600*110 1250*800*140 1400* 1500*840*180 1700*950*180
Dia Of Shank Hole mm Φ38 Φ38 Φ38 Φ50 Φ50 Φ50 Φ65 Φ65 Φ65 Φ70
Main Motor KW*P 2.2*4 2.2*4 3.7*4 5.5*4 7.5*4 11*4 15*4 18.5*4 22*4 30*4
Slide Adjust Structure mm ManuaI opearation EIectric driving
Required Air Pressure kgf/cm2 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6
Press Accuracy   CNS(JIS)1cIass
Press Dimension(L*W*H) mm 1390*920*2125 1450*900*2300 1650*1040*2390 1670*1090*2750 1820*1328*3005 1970*1458*3218 2285*1559*3610 2465*1790*4058 2585*1945*4433 2900*1950*4600
Die Cushion(Optional)   — One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder One Plate One Cylinder
Capacity Ton — 2.3 2.3 3.6 3.6 6.3 10 14 14 14
Stroke Length mm — 50 50 70 70 80 80 100 100 100
Cushion Area mm — 300*230 300*230 350*300 450*310 500*350 650*420 710*480 810*480 810*480

Model: ALD
Model Unit ALD-80 ALD-110 ALD-160 ALD-200 ALD-260
Type Ton V H V H V H V H V H
Stroke mm 150 70 180 80 200 90 200 100 250 150
Stroke Per Minute S.P.M 35-80 80-120 30-60 60-90 20-50 40-70 20-50 50-70 20-40 40-50
Tonnage Rated Point mm 4 2 6 3 6 3 6 3 7 3.5
Die Height(D.H) mm 340 380 360 410 460 510 460 510 500 550
Slide Adjustment mm 80 80 100 110 120
Slide Area mm 560*420*70 650*470*80 700*550*90 850*630*90 950*700*100
Bolster Area mm 740*550*90 880*600*110 960*800*140 1120*820*160 1200*840*180
Dia Of Shank Hole mm φ50 φ50 φ65 φ65 φ65
Main Motor KW*P 7.5*4 11*4 15*4 18.5*4 22*4
Slide Adjust Structure mm EIectric driving
Required Air Pressure kgf/cm2 5-6 5-6 5-6 5-6 5-6
Press Accuracy   CNS(JIS)1cIass
Press Dimension(L*W*H) mm 1850*1300*3200 1950*1600*3250 2400*1700*3650 2750*1900*4100 2950*2000*4500
Die Cushion(Optional)   One Plate One Cylinder
Capacity Ton 3.6 6.3 10 14 14
Stroke Length mm 70 70 80 100 100
Cushion Area mm 350*235 410*260 540*350 640*470 640*470

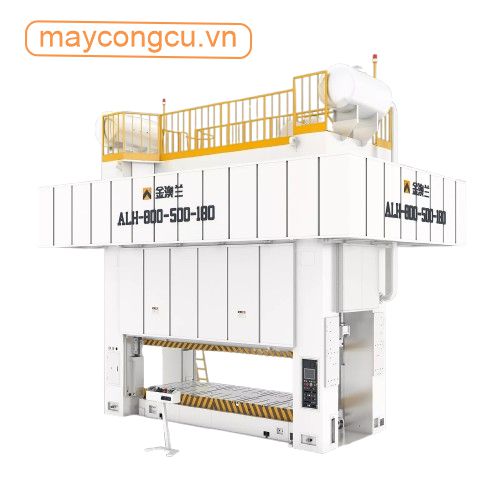

Model: ALH
Model Unit ALH-250MB ALH-300MB ALH-400MB ALH-500MB ALH-630MB ALH-800MB ALH-1000MB
Type Ton 250 300 400 500 630 800 1000
Stroke mm 300 350 300 350 300 350 300 350 300 400 400 400 400 400
Stroke Per Minute S.P.M 20-35 20-35 20-35 20-35 20-35 20-30 20-35 20-30 15-40 15-25 15-25 15-25 15-25 15-25
Tonnage Rated Point mm 7 7 7 7 9 9 9 9 10 13 10 13 10 13
Die Height(D.H) mm 800 800 800 800 700 800 700 800 1000 1000 1000 1000 1000 1000
Slide Adjustment mm 200 200 200 200 250 250 300 250 350 350 400 400 400 400
Slide Area mm 2500*1200 2770*1250 2500*1200 2770*1300 3000*1400 3400*1500 3000*1400 3400*1500 3800*1600 4200*1800 4000*1800 4500*1800 4000*1800 4500*1800
Bolster Area mm 2600*1200 3000*1250 2600*1200 3000*1400 3000*1400 3400*1500 3000*1400 3400*1500 3800*1600 4200*1800 4000*1800 4500*1800 4000*1800 4500*1800
Side Opening Size mm 1100*850 1100*850 1100*900 1100*900 1250*1000 1250*1000 1250*1000 1250*1000 1500*1100 1500*1100 1500*1100 1500*1100 1500*1100 1500*1100
Main Motor KW*P 30*4 30*4 37*4 37*4 45*4 45*4 55*4 55*4 75*4 75*4 90*4 90*4 110*4 110*4
Press Accuracy   CNS(JIS)1cIass
Die Cushion(Optional)   One Plate Two Cylinder
Capacity Ton 40 40 50 50 60 60 80 80 80 80 100 100 120 120
Stroke Length mm 0-150 0-150 0-180 0-180 0-180 0-180 0-180 0-180 0-180 0-180 0-180 0-180 0-200 0-200
Cushion Area mm One Plate Two Cylinder

Model: T1
Model Unit T1-250MB T1-315MB T1-400MB T1-630MB T1-800MB
Type Ton 250 315 400 630 800
Stroke mm 500 500 600 600 600
Stroke Per Minute S.P.M 10~20 10~20 10~20 10~20 10~20
Tonnage Rated Point mm 10 10 13 13 16
Max. Die Height mm 750 750 800 1000 1000
Slide Adjustment mm 300 300 400 500 500
Slide Area mm 1250*1000 1300*1200 1350*1200 1680*1400 1860*1500
Bolster Area mm 1250*1000 1300*1200 1350*1200 1700*1500 1900*1600
SIide Opening mm By Design
Main Motor KW*P 30*4 37*4 45*4 75*4 90*4
Slide Adjust Structure mm EIectric driving
Required Air Pressure kgf/cm² 5~6
Press Accuracy   CNS(JIS)1cIass
Die Cushion(Optional)   One Plate One Cylinder
Capacity Ton 16 20 30 40 50
Stroke Length mm 90 110 135 250 250
Cushion Area mm By Design

Model: T2
Model Unit T2-250MB T2-400MB T2-500MB T2-630MB T2-800MB T2-1000MB T2-1250MB T2-1600MB
Type Ton 250 400 500 630 800 1000 1250 1600
Stroke mm 400 600 600 700 700 800 800 900
Stroke Per Minute S.P.M 10-20 10-18 10-18 10-18 10-18 8-16 8-16 8-16
Tonnage Rated Point mm 10 13 13 13 13 13 13 13
Die Height(D.H) mm 800 1000 1000 1000 1000 1100 1100 1200
Slide Adjustment mm 300 400 400 500 500 500 500 550
Slide Area mm 2800*1500 3500*1700 3500*1800 3600*1800 3600*1800 4000*1800 4000*1800 4500*1800
Bolster Area mm 2800*1500 3500*1700 3500*1800 3600*1800 3600*1800 4000*1800 4000*1800 4500*1800
SIide Opening mm By Design
Main Motor KW*P 30*4 45*4 55*4 75*4 90*4 110*4 132*4 160*4
Slide Adjust Structure mm  EIectric driving
Required Air Pressure kgf/cm2 5~6
Press Accuracy   CNS(JIS)1cIass
Die Cushion(Optional)   One Plate Two Cylinder
Capacity Ton 28 80 100 120 130 150 200 230
Stroke Length mm 0-200 0-200 0-200 0-250 0-250 0-250 0-250 0-300
Cushion Area mm By Design

Model: T2L8
Model Ton T2L8-630MB T2L8-800MB T2L8-1000MB T2L8-1250MB T2L8-1600MB
Type mm 630 800 1000 1250 1600
Stroke S.P.M 700 700 800 800 900
Stroke Per Minute mm 8-16 8-16 8-16 8-16 8-16
Tonnage Rated Point mm 13 13 13 13 13
Die Height(D.H) mm 1000 1000 1000 1200 1200
Slide Adjustment mm 500 500 500 500 500
Slide Area mm 3600*1800 3600*1800 4000*1800 4000*1800 4500*2000
Bolster Area mm 3600*1800 3600*1800 4000*1800 4000*1800 4500*2000
Side Opening Size mm One Plate Two Cylinder
Main Motor mm 90*4 110*4 132*4 160*4 200*4
Main Motor kgf/cm2 15*6 15*6 15*6 18.5*6 22*6
Required Air Pressure   5~6
Press Accuracy mm CNS(JIS)1cIass
Maximum upper mold weight mm 10 12 15 15 20
Left and right column spacing mm 650 650 650 650 650
Die Cushion(Optional) Ton One Plate Two Cylinder
Capacity mm 100 120 120 150 200
Stroke Length mm 0-250 0-250 0-250 0-250 0-250
Cushion Area mm By Design

Model: T4
Model Unit T4-630MB T4-800MB T4-1000MB T4-1250MB T4-1600MB
Type Ton 630 800 1000 1250 1600
Stroke mm 700 700 700 800 800
Stroke Per Minute S.P.M 15-25 15-25 15-25 15-22 15-22
Tonnage Rated Point mm 13 13 13 13 13
Max. Die Height mm 1120 1120 1200 1200 1200
Slide Adjustment mm 400 400 450 500 500
Slide Area mm 4000*1800 4200*1800 5000*1800 5500*1800 6000*1800
Bolster Area mm 4000*1800 4200*2300 5000*2300 5500*2500 6000*2500
Side Opening Size mm 2900*1800 3100*1800 3300*1800 3300*1800 3300*1800
Main Motor mm 90*4 110*4 132*4 160*4 200*4
Main Motor mm 15*6 15*6 15*6 18.5*6 22*6
Required Air Pressure mm 5~6
Press Accuracy kgf/cm2 CNS(JIS)1cIass
Max. Upper Die Weight mm 15 15 20 20 20
Working Height mm 650 650 650 650 650
