S205 CNC Slant bed lathe
S205 CNC Slant bed lathe
■JAPAN technology ■8''/10'' chuck ■8T/12T tool turret ■Heavy-duty type
Features:
■ Adopt similar structure as JAPAN MAZAK, bed adopt flat bed, slide board adopt 30° slant design, high rigidity, good machining flexibility
■ Adopt JAPAN technology, designed by JAPAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc
■ Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
■ Base adopt multilayer strengthening rib, ensure bed's strength and stability
■ Frame adopt oil-coolant separation design, adopt independent coolant tank

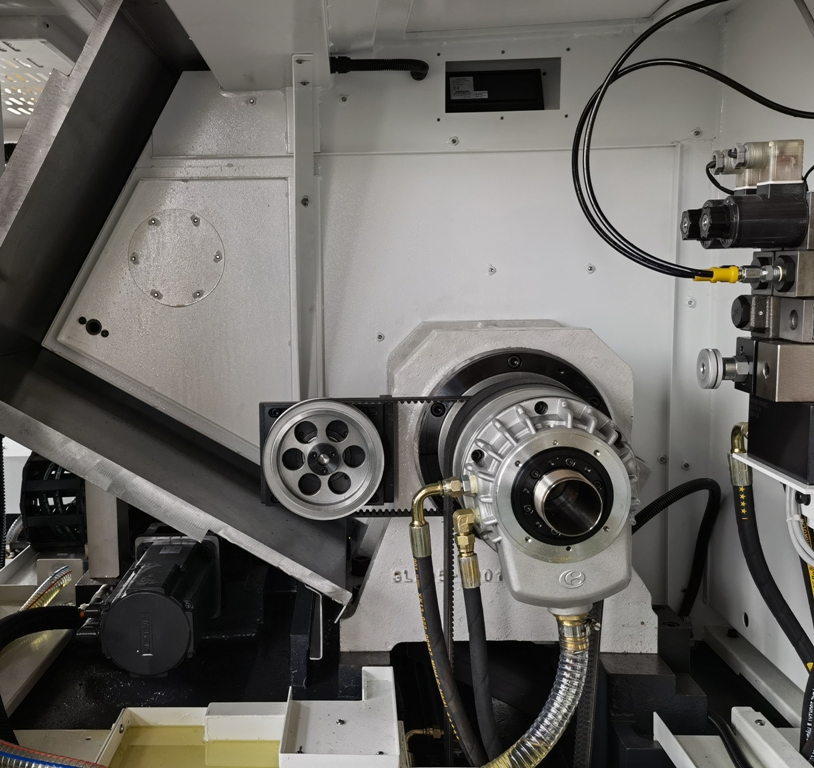

■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
■ Adopt high precision pre-stretched ball screw(double nuts), coupled with motor directly by linkager,high transmission rigidity, can realize μ class precise turning.
■ Adopt high precision ROLLER type linear guideway, high rigidity, good accuracy holding, suitable for heavy loading and precise machining
■ Adopt Hydraulic-servo tool turret/powered tool turret,fast tool changing, good repeatability,high efficiency
■ S205/205M/205Y adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway
■ S205S/205SM/205SY adopt high precision electro-spindle as Sub-spindle
■ Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity
■ S205: 8T/12T hydraulic-servo tool turret+tailstock; S205M: 12T powered tool turret+tailstock; S205Y: 12T powered tool turret+Y axes+tailstock;
S205S: 12T
hydraulic-servo tool turret+Sub-spindle; S205SM: 12T powered tool
turret+Sub-spindle ; S205SY: 12T powered tool turret+Y axes+Sub-spindle
Specification:
| Item | Specification | Unit | BL-S205 | BL-S205M | BL-S205Y | BL-S205S | BL-S205SM | BL-S205SY | |
| Capacity | Max. swing dia. over bed | mm | Φ550 | ||||||
| Max. swing dia. over slide | mm | Φ290 | Φ290 | Φ200 | Φ290 | Φ290 | Φ200 | ||
| Max. turning length | mm | 530 | 400 | ||||||
| Max. turning dia. | mm | Φ380 | Φ380 | Φ300 | Φ380 | Φ380 | Φ300 | ||
| Spindle | Spindle transmission type | / | Mechanical spindle, belt-drive | ||||||
| Spindle bore | mm | Φ66 | |||||||
| Spindle end type | / | A2-6 | |||||||
| Spindle speed | rpm | 4500 | |||||||
| Spindle max. bar through dia. | mm | Φ51 | |||||||
| Spindle motor power | kw | 11 | |||||||
| Spindle chuck size | ‘’ | 8’’ | |||||||
| Spindle C axes division accuracy | Deg | / | 0.001° | 0.001° | / | 0.001° | 0.001° | ||
| Sub-spindle | Sub-spindle transmission type | / | / | Electro-spindle, direct-drive | |||||
| Sub-spindle bore | mm | / | Φ56 | ||||||
| Sub-spindle end type | / | / | A2-5 | ||||||
| Sub-spindle rated/max. speed | rpm | / | 1750/6000 | ||||||
| Sub-spindle max. bar through dia. | mm | / | Φ44 | ||||||
| Sub-spindle motor power | kw | / | 11 | ||||||
| Sub-spindle chuck size | ‘’ | / | 6’’ | ||||||
| Sub-spindle rapid moving speed | m/min | / | 28 | ||||||
| Sub-spindle travel | mm | / | 490 | ||||||
| X/Y/Z axes | X/Y/Z axes linear guideway type | / | ROLLER type | ||||||
| X axes travel | mm | 190+10 | 190+10 | 170+20 | 190+10 | 190+10 | 170+20 | ||
| Y axes travel | mm | / | / | ±45 | / | / | ±45 | ||
| Z axes travel | mm | 550 | |||||||
| X/Z axes rapid moving speed | m/min | 30 | |||||||
| Y axes rapid moving speed | m/min | / | / | 30 | / | / | 30 | ||
| Tool turret | Tool turret type | / | Hydraulic-servo tool turret | BMT55 Powered tool turret | BMT55 Powered tool turret | Hydraulic-servo tool turret | BMT55 Powered tool turret | BMT55 Powered tool turret | |
| Tool qty | / | 8T(opt.:12T) | 12T | 12T | 12T | ||||
| Vicinal tool changing time | s | 0.28 | |||||||
| Farthest tool changing time | s | 0.4 | |||||||
| Toolshank size | mm | 25×25, Φ40 | |||||||
| Live tool motor power | kw | / | 4.5 | 4.5 | / | 4.5 | 4.5 | ||
| Live tool motor torque | Nm | / | 15 | 15 | / | 15 | 15 | ||
| Live tool max. speed | rpm | / | 4000 | 4000 | / | 4000 | 4000 | ||
| Tailstock | Distance from tailstock center to chuck jaw(programmable range) | mm | 65~565 | / | / | / | |||
| Tailstock rapid move speed | m/min | Servo tailstock:30; Hydraulic tailstock: 15 | / | / | / | ||||
| Tailstock quill taper | / | MT4# | / | / | / | ||||
| Accuracy | Ex-circle finish turning accuracy | / | IT6 | ||||||
| Finish turning roughness | mm | Ra0.4~1.6 | |||||||
| Finish turning roundness | mm | ≤0.003 | |||||||
| Positioning accuracy(X/Z) | mm | 0.005/0.008 | |||||||
| Repeat positioning accuracy(X/Z) | mm | 0.002/0.004 | |||||||
| Others | Coolant pump motor | w | 480 | ||||||
| Coolant pump flow | m³/h | 2.5 | |||||||
| Overall size | mm |
2455×1720×1740/3480×1720×1740
(exclude/include chip conveyor)
|
2605×1720×1840/3630×1720×1840
(exclude/include chip conveyor)
|
||||||
| N.W. | kg | 4100 | 4100 | 4200 | 4450 | 4450 | 4550 | ||
